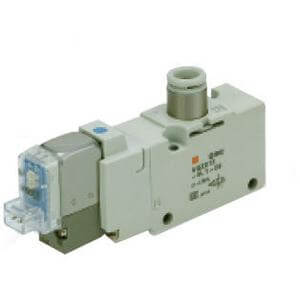

SMC · Pilot Operated 3 Port Solenoid Valves
VQZ332B-5LOB1-02F-Q
excl. VAT · €109,22 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VQZ332B-5LOB1-02F-Q |
|---|
3 PORT SOLENOID VALVE
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
Features
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MPa
- (high pressure style: 1.0MPa)
- mm²: VQZ200 7,2 - 10,9; VQZ300 13,6 - 16,3
- Coil rated voltage: 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time:
- VQZ200 metal seal 14ms or less; rubber seal 15ms or less
- VQZ300 metal seal 17ms or less; rubber seal 25ms or less
Specifications
- Part number: VQZ332B-5LOB1-02F-Q
- Item number: 02991478
- Series: 3 (VQZ300)
- Type of Actuation: 3 (Rubber Seal N.C.)
- Configuration: B (High Speed Response, 0.9W)
- IP65 Compliant: None
- Port Size: 02 (Rc1/4)
- Coil Voltage: 5 (24VDC)
- Option: None
- Thread Type: F (G)
- Lead Wire: LO (L Plug w/o Connector)
- Manual Override: B (Locking Slotted Style)
- Lead time: 18 days
- Country of origin: JP
