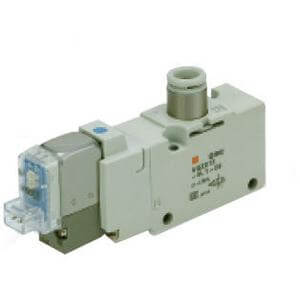

SMC · Pilot Operated 3 Port Solenoid Valves
VQZ312-5GB1-02F-Q
excl. VAT · €95,69 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VQZ312-5GB1-02F-Q |
|---|
3 PORT SOLENOID VALVE
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
Features
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MPa
- (high pressure style: 1.0MPa)
- mm²: VQZ200 7,2 - 10,9; VQZ300 13,6 - 16,3
- Coil rated voltage: 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time:
- VQZ200 metal seal 14ms or less; rubber seal 15ms or less
- VQZ300 metal seal 17ms or less; rubber seal 25ms or less
Specifications
- Part number: VQZ312-5GB1-02F-Q
- Item number: 01409282
- Series: 3 (VQZ300)
- Type of Actuation: 1 (Metal Seal N.C.)
- Configuration: Standard (0.35W DC, AC)
- Coil Voltage: 5 (24VDC)
- Lead Wire: G (Grommet)
- Manual Override: B (Locking Slotted Style)
- IP65 Compliant: None
- Port Size: 02 (Rc1/4)
- Thread Type: F (G)
- Option: None
- Lead time: 18 days
- Country of origin: JP
Documents
More part numbers in this series
VQZ332-5LO1-02T-Q€86,97VQZ332B-5MOB1-C8F-Q€95,20VQZ332B-5MOB1-C10F-Q€95,15VQZ332B-5MOB1-02F-Q€91,02VQZ332B-5MO1-C8F-Q€90,23VQZ332B-5MO1-C10F-Q€90,18VQZ332B-5LOB1-C8F-Q€95,20VQZ332B-5LOB1-C10F-Q€95,15VQZ332B-5LOB1-02F-Q€91,02VQZ332B-5GB1-C8F-Q€92,72VQZ332B-5GB1-C10F-Q€92,67VQZ332B-5GB1-02F-Q€88,54VQZ332B-5G1-C8F-Q€87,75VQZ332B-5G1-C10F-Q€87,70VQZ332B-5G1-02F-Q€83,57
