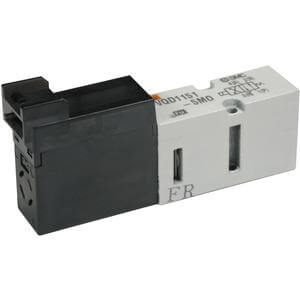

VQD1000, 4 Port Direct Poppet Valve | VQD1151-5MO-Q

Solenoid valve

VQD1000 series 4 port, direct operated, poppet solenoid valve offers large flow capacity in a compact, lightweight body. Vacuum applications (up to -100kPa) are possible. Components of the VQD1000 valves that are in contact with fluid are all copper free. The VQD series offers a remarkably quick and stable response time.

Features

• Fluid: Air/inert gas
• Operating pressure range: 0MPa/10Torr (Vacuum) - 0.7MPa (7.1kgf/cm 2 )
• Effective area (Cv factor): Standard type 0.9mm 2 (0.05);
• high flow type 1.5mm 2 (0.08)
• Coil rated voltage: 12, 24VDC
• Response time: ON: 4ms; OFF: 2ms
• Ambient/fluid temp: -10 to 50°C

Specifications

• Part number: VQD1151-5MO-Q
• Item number: 00057776
• Body: 5 (Base mounted)
• Option: Standard (2W)
• Voltage: 5 (24VDC)
• Lead Wire: MO (M Plug w/o Connector)
• Port Size: w/o Sub-plate
• CE Marked: Q (CE Marked)
• Lead time: 5 days
• Country of origin: JP
