SMC · Direct Operated 3/4/5 Port Solenoid Valves

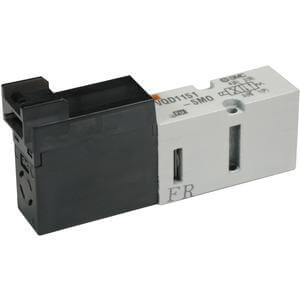

VQD1121W-5M-M5-Q
excl. VAT · €64,54 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VQD1121W-5M-M5-Q |
|---|
4 PORT SOLENOID VALVE
VQD1000 series 4 port, direct operated, poppet solenoid valve offers large flow capacity in a compact, lightweight body. Vacuum applications (up to -100kPa) are possible. Components of the VQD1000 valves that are in contact with fluid are all copper free. The VQD series offers a remarkably quick and stable response time.
Features
- Fluid: Air/inert gas
- Operating pressure range: 0MPa/10Torr (Vacuum) - 0.7MPa (7.1kgf/cm 2 )
- Effective area (Cv factor): Standard type 0.9mm 2 (0.05);
- high flow type 1.5mm 2 (0.08)
- Coil rated voltage: 12, 24VDC
- Response time: ON: 4ms; OFF: 2ms
- Ambient/fluid temp: -10 to 50°C
Specifications
- Part number: VQD1121W-5M-M5-Q
- Item number: 00649499
- Body: 2 (Body ported (Single unit))
- Option: W [High Flow, Vacuum (4W)]
- Voltage: 5 (24VDC)
- Lead Wire: M (M Plug Connector w/Lead Wire 0.3 M)
- Port Size: M5 Thread
- CE Marked: Q (CE Marked)
- Lead time: 19 days
- Country of origin: JP
Documents
