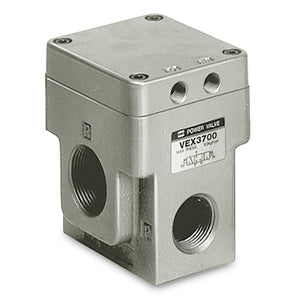

VEX3, Power Valve, 3 Position Valve | VEX3500-06F

POWER VALVE

Power valve series VEX includes a regulator valve (VEX1*0), precision regulator (VEX1*3), 3 position valve (VEX3) and a economy valve (VEX5). The 3 port large capacity poppet exhausting regulator is equipped with a relief port the same size as the connection port. The 3-port, 3-position double solenoid that permits vacuum suction, vacuum destruction, & suspension (closed) is ideal for a system where many valves are used.

Features

• Power valve series, 3 position valve
• Body ported & base mounted styles
• Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
• Proof pressure: 1.5MPa
• Ambient temperature: 0~50°C (air op: 60°C)

Specifications

• Part number: VEX3500-06F
• Item number: 00056398
• Size: 50 (Body Ported)
• Operation: 0 (Air Operated Style)
• Port Size: 06 (3/4)
• Thread: F (G(PF))
• Option: None
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
