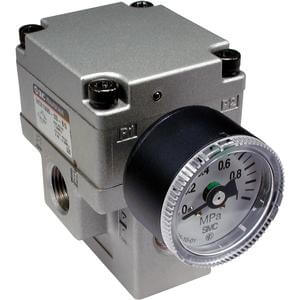

VEX1*0, Power Valve, Regulator Valve | VEX1100-02F

REGULATOR VALVE

Power valve series VEX includes a regulator valve (VEX1*0), precision regulator (VEX1*3), 3 position valve (VEX3) and a economy valve (VEX5). The 3 port large capacity poppet exhausting regulator is equipped with a relief port the same size as the connection port. The 3-port, 3-position double solenoid that permits vacuum suction, vacuum destruction, & suspension (closed) is ideal for a system where many valves are used.

Features

• Power valves series, regulator valve
• Styles: air operated, external pilot solenoid
• Port sizes (mm): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2
• Maximum operating pressure: 1.0MPa
• Ambient & fluid temperature: 0 to 50°C

Specifications

• Part number: VEX1100-02F
• Item number: 01095142
• Size: 1 (Body Ported)
• Operation: 0 (Air Operated Style)
• Port Size: 02 (1/4)
• Thread: F (G(PF))
• Voltage: Air Operated
• Lead Wire: Air Operated
• Surge Suppressor: None
• Option: None
• Lead time: 28 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
• CE certificate
• CE certificate 2
• CE certificate 3
• CE certificate 4
