SMC · Pilot Operated 3 Port Solenoid Valves
VEX3321-04F5DO1
excl. VAT · €380,78 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | VEX3321-04F5DO1 |
|---|
3 POSITION VALVE

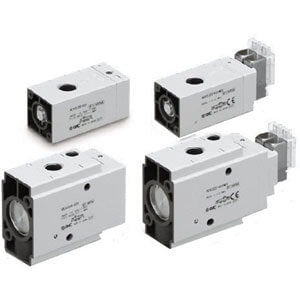

Power valve series VEX includes a regulator valve (VEX1*0), precision regulator (VEX1*3), 3 position valve (VEX3) and a economy valve (VEX5). The 3 port large capacity poppet exhausting regulator is equipped with a relief port the same size as the connection port. The 3-port, 3-position double solenoid that permits vacuum suction, vacuum destruction, & suspension (closed) is ideal for a system where many valves are used.
Features
- Body Ported
- 3 port 3 position valve, pilot solenoid (internal/external) or air operated.
- Flow up to 3300 l/min.
- Reduced power consumption: 1 W.
- Response time: 60 ms or less.
- Enables intermediate cylinder stopping, acceleration or deceleration.
Specifications
- Part number: VEX3321-04F5DO1
- Item number: 01522829
- Body Size: 32
- Pilot Type: 1 (External Pilot Solenoid)
- Port: 04 (1/2)
- Thread: F (G)
- Rated Voltage: 5 (24 VDC)
- Electrical Entry: DO (DIN Terminal w/o Connector)
- Light/surge voltage suppressor: None
- Manual Override: Non-locking Push Style or None
- Option: None
- Lead time: 28 days
- Country of origin: JP
