SMC · Pilot Operated 3 Port Solenoid Valves
VEX1200-02F
excl. VAT · €137,52 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery time: On request
Need volume pricing or a special version? Request a quote →
Total
| Part number | VEX1200-02F |
|---|

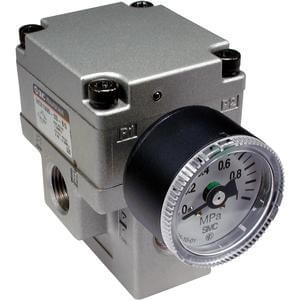

REGULATOR VALVE
Power valve series VEX includes a regulator valve (VEX1*0), precision regulator (VEX1*3), 3 position valve (VEX3) and a economy valve (VEX5). The 3 port large capacity poppet exhausting regulator is equipped with a relief port the same size as the connection port. The 3-port, 3-position double solenoid that permits vacuum suction, vacuum destruction, & suspension (closed) is ideal for a system where many valves are used.
Features
- Power valves series, regulator valve
- Styles: air operated, external pilot solenoid
- Port sizes (mm): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2
- Maximum operating pressure: 1.0MPa
- Ambient & fluid temperature: 0 to 50°C
Specifications
- Part number: VEX1200-02F
- Item number: 00372929
- Size: 2 (Base Mounted)
- Operation: 0 (Air Operated Style)
- Port Size: 02 (1/4)
- Thread: F (G(PF))
- Voltage: Air Operated
- Lead Wire: Air Operated
- Surge Suppressor: None
- Option: None
- Lead time: 28 days
- Country of origin: JP
