SMC · Rodless Actuators

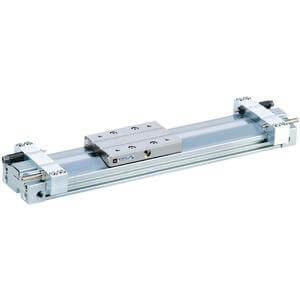

MY3B63TF-600
excl. VAT · €1.472,83 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | MY3B63TF-600 |
|---|---|
| Bore Size | 63mm |
| Stroke | 600 |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs.(Or None in the Case of No Switch) |
| Port Thread | TF (G Thread) |
| Stroke Adjusting Unit | Left: w/o Unit; Right: w/o Unit |
| Style | B (Standard Type-Air Cushion) |
| Auto Switch | No Switch |
| Lead time (days) | 6 |
| Minimum order quantity | 1 |
| Country of origin | ES |
| TARIC code | 8479899790 |
- Mechanically jointed rodless cylinder series MY3 provides high functionality with reduced height and length. The uniquely designed piston shape enables reduction of the height and length as well as practical arrangement of the common piping passages, cushion mechanism and positioning mechanism. This has achieved drastic miniaturization and weight reduction.
Key features
- w/o Stroke Adjustment Unit
- Basic short type (rubber bumper) and Basic standard type (air cushion)
- Applicable bore sizes: 16mm, 20mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm
- Easy connection with external guide.
- Vertical and lateral mouting is possible.
- High functionality with reduced height and length.
