SMC · Guided Actuators

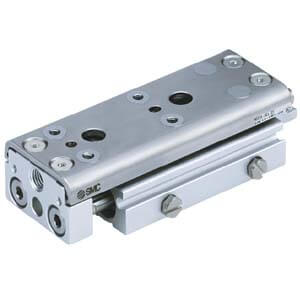

MXQ12A-20Z
excl. VAT · €455,72 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | MXQ12A-20Z |
|---|---|
| Bore Size | 12 mm |
| Lube-retainer | Without Stable Lubrication Function |
| Stroke | 20 mm |
| Adjuster Option | Z (Without Adjuster) |
| Functional Option | Without Functional Option |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Made to Order | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Air Slide Table, Double Acting
- High rigidity in a compact and lightweight design
- Bore sizes (mm): 6, 8, 12, 16, 20, 25
- Strokes up to 150 mm
- 4 body types
- Various stroke adjusters
- Many options and made to order available.
Key features
- More compact: High reduced up to 10%.
- Lighter: Weight reduced up to 35%.
- More flexible: Piping ports and auto switch mounting grooves on both sides.
- Auto switch visibility improved.
