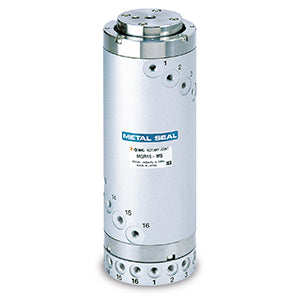

MQR, Rotary Union, Low Torque Metal Seal Type – MQR8-M5

• Rotary Union, Low Torque.
• Low torque: 0.003 to 0.50 Nm.
• Number of circuits: 1 to 16 circuits.
• Allowable rpm: 200 to 3000.
• Operating pressure range: -100 kPa to 1 MPa.
• Seal structure: rubber or metal.

Key features

• Number of circuits: 1 to 16 circuits.
• Service life: 1 billion rotations.
• Allowable rpm: 200 to 3000.
• Operating pressure range: -100 kPa to 1.0 MPa.

Specifications

• Circuits: 8
• Option: Standard

Additional information

• Part number: MQR8-M5
• Lead time (days): 16
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8487905990

Documents

• Catalogue (PDF)
• CAD model
• Operation manual
