SMC · Specialty Actuators

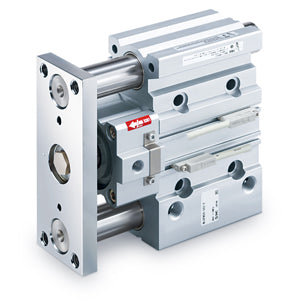

MLGPM25TF-75Z-B
excl. VAT · €523,90 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | MLGPM25TF-75Z-B |
|---|---|
| Bearing Style | M (Slide Bearing) |
| Bore Size | 25mm |
| Port Type | TF (G) |
| Stroke | 75 |
| Locking Direction | B (Retraction Stroke Lock) |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 31 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Guided type end lock cylinders are available with a variety of locking methods and locking options in one direction or both depending on cylinder model. Emergency stops and intermediate stops are possible. Locking position can be changed to accommodate an exterior stopper position or the thickness of clamped work pieces.
Key features
- With lock.
- Stopping possible at any stroke position.
- Locking direction selectable.
- Compactness & Lightness.
- Bore size: 20, 25, 32, 40, 50, 63, 80, 100 (mm).
- Strokes from 20 to 350mm (depending upon bore size).
- 4 types of mounting are possible: top mounting, side mounting, bottom mounting and T-slot side mounting.
- Auto switches can be mounted on 2 surfaces.
