SMC · Grippers & Escapements
MHK2-12D1S
excl. VAT · €627,91 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | MHK2-12D1S |
|---|---|
| Parallel gripper | |
| Ø12 | |
| stainless steel jaws | |
| double acting | |
| ports M5 | |
| opening stroke | 4 mm |
| radial ports | |
| rubber cover | |
| cover material | Si |
| Country of origin | JP |
| TARIC code | 8479899790 |

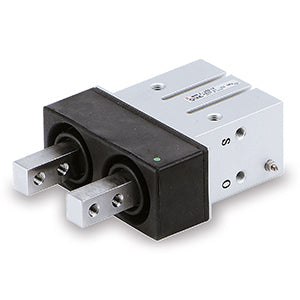

High Accuracy, Wedge Cam - MHK
Key features
- Maximum gripping force per finger 86 N at 0.5 MPa
- Double acting
- Repeatability: ±0.01 mm
- Max. operating frequency: 120 c.p.m.
