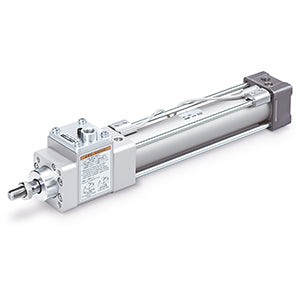

SMC · Specialty Actuators
MDWBT100TF-600
excl. VAT · €1.839,62 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | MDWBT100TF-600 |
|---|---|
| Stroke | 600 |
| Magnet | D (Built-in Magnet) |
| Pivot Bracket | No Bracket |
| Auto Switch | No Switch |
| Cushion | Air Cushion |
| Thread | TF (G) |
| Made to Order | None |
| Mounting | T (Centre trunnion) |
| Bore Size | 100 mm |
| Rod Boot | None |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Rod End Bracket | No Bracket |
| Lead time (days) | 30 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8412310090 |
- Cylinder with Lock, Double Acting, Single/Double Rod
- Locking unit can be ordered separately
- Lock can be manually operated
- Separate construction of lock unit and cylinder
- Bore sizes (mm): 32, 40, 50, 63, 80, 100
- Strokes up to 2500 mm
- Air cushion / rubber bumper selectable.
Key features
- Cylinder with Lock: double acting single rod
- Bore sizes: 32, 40, 50, 63, 80, 100 (mm)
- Strokes from 25mm through 2500mm depending upon bore size
- Mounts: basic, foot, front & rear flange, single or double clevis, & center trunnion
- Variety of switches and a variety of lead wire lengths.
