SMC · Slider Types

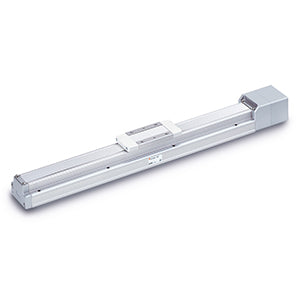

LEFS40NZA-150
excl. VAT · €1.553,15 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | LEFS40NZA-150 |
|---|
For positioning or transfer applications demanding precision and less maintenance with a custom motor.
Features
- Body size: 25, 32 and 40 mm
- Stroke: 50 to 1200 mm
- AC Servo Motor, 100/200/400W.
Specifications
- Part number: LEFS40NZA-150
- Article no.: 01381984
- Series: LEFS (Ball Screw Drive)
- Accuracy: Basic Type
- Stroke: 150 mm
- Auto Switch Mounting Bracket: None
- Seal Band Stopper: Standard
- Motor Mounting Position: In-line
- Size: 40
- Motor Type: NZ (Mounting Type Z)
- Lead Screw: A (LEFS25, 12mm; LEFS32, 16mm; LEFS40, 20mm)
- Positioning Pin Hole: Housing B Bottom
- Lead time: 10 days
- Country of origin: JP
Documents
More part numbers in this series
LEFS25NZA-100€836,47LEFS25NZA-150€881,02LEFS25NZA-200€881,03LEFS25NZA-300€925,57LEFS25NZA-400€970,10LEFS25NZA-50€836,47LEFS25NZA-500€1.014,63LEFS25NZA-600€1.059,19LEFS25NZA-700€1.103,74LEFS25NZA-800€1.148,29LEFS32NZA-100€994,86LEFS32NZA-1000€1.418,01LEFS32NZA-150€1.041,88LEFS32NZA-200€1.041,88LEFS32NZA-300€1.088,92
