SMC · Slider Types

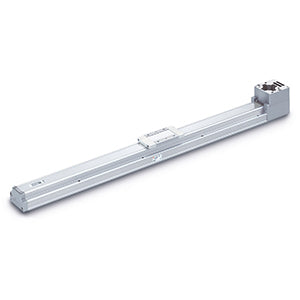

LEFB25NZS-600
excl. VAT · €1.284,88 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | LEFB25NZS-600 |
|---|
Suitable for easy transfer or positioning in standard applications with customised motor
Features
- Body size: 25, 32, 40
- Stroke: 300 to 3000 mm
- AC servo motor 100, 200, 400 W
- Horizontal workload: up to 25 kg
- Speed: 2000 mm/s
- Acceleration: up to 20000 mm/s²
- Compatible with several motors: OMRON, Siemens AG, Beckhoff automation and more.
Specifications
- Part number: LEFB25NZS-600
- Article no.: 01208716
- Series: LEFB (Belt Drive)
- Stroke: 600 mm
- Auto Switch Mounting Bracket: None
- Motor Mounting Position: Top Mounting
- Size: 25
- Motor Type: NZ (Mounting Type Z)
- Lead: S
- Positioning Pin Hole: Housing B Bottom
- Lead time: 23 days
- Country of origin: JP
Documents
More part numbers in this series
LEFB25NZS-1000€1.174,44LEFB25NZS-1200€1.226,31LEFB25NZS-1500€1.304,07LEFB25NZS-2000€1.433,74LEFB25NZS-300€992,96LEFB25NZS-400€1.018,92LEFB25NZS-500€1.044,78LEFB25NZS-600This itemLEFB25NZS-700€1.096,63LEFB25NZS-800€1.122,59LEFB25NZS-900€1.148,48LEFB32NZS-1000€1.537,40LEFB32NZS-1200€1.610,04LEFB32NZS-1500€1.718,88LEFB32NZS-2000€1.900,41
