Suitable for easy transfer or positioning in standard applications with customised motor
Features
- Body size: 25, 32, 40
- Stroke: 300 to 3000 mm
- AC servo motor 100, 200, 400 W
- Horizontal workload: up to 25 kg
- Speed: 2000 mm/s
- Acceleration: up to 20000 mm/s²
- Compatible with several motors: OMRON, Siemens AG, Beckhoff automation and more.
Specifications

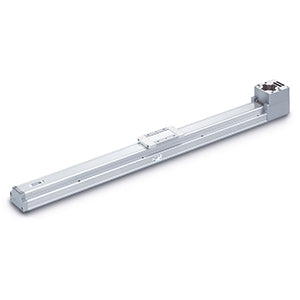

- Part number: LEFB25NZS-1000
- Article no.: 01101855
- Series: LEFB (Belt Drive)
- Stroke: 1000 mm
- Auto Switch Mounting Bracket: None
- Motor Mounting Position: Top Mounting
- Size: 25
- Motor Type: NZ (Mounting Type Z)
- Lead: S
- Positioning Pin Hole: Housing B Bottom
- Lead time: 23 days
- Country of origin: JP
