SMC · Fittings

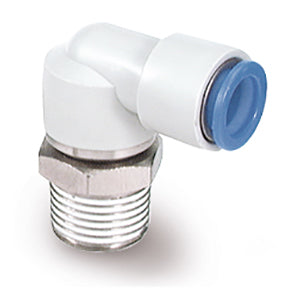

KSH04-01S
excl. VAT · €17,18 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | KSH04-01S |
|---|---|
| Model | H (Male Connector) |
| Applicable Tube OD | Ø4 mm |
| Port Size | 01 (R[PT]1/8) |
| Sealant | S [Sealant] |
| Lead time (days) | 5 |
| Minimum order quantity | 2 |
| Country of origin | CN |
| TARIC code | 7412200000 |
- Rotary one-touch fitting series KS comes with a ball race bearing for oscillating or rotating applications. KS series comes in 5 tube sizes ranging from 4 to 12mm. One touch collet includes anti tube rotation mechanism. KS is suitable for copper free applications.
Key features
- Rotary, One-touch fitting (standard)
- Metric threads
- Tube OD: Ø4, Ø6, Ø8, Ø10, Ø12
- Maximum operating pressure: 1.0 MPa
- Ambient & fluid temperature: -5 to 60<SPAN style="FONT-SIZE: 10pt; FONT-FAMILY: 'Times New Roman'; mso-fareast-font-family: 'Times New Roman'; mso-ansi-language: EN-US; mso-fareast-language: EN-US; mso-bidi-language: AR-SA">°C</SPAN>
