- One-touch fitting, a general purpose PBT material
- Applicable tubing from Ø 2 to Ø 16
- Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
- Operating pressure range: -100 kPa to 1 MPa
- Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
- With sealant.
Key features

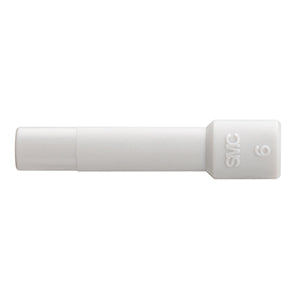

- Plug.
- Applicable Fitting Size: ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2.
Specifications
- Model: KQ2P
- Applicable Fitting: ø 4
Additional information
- Part number: KQ2P-04
- Lead time (days): 3
- Minimum order quantity: 10
- Country of origin: SG
- TARIC code: 3917400099
