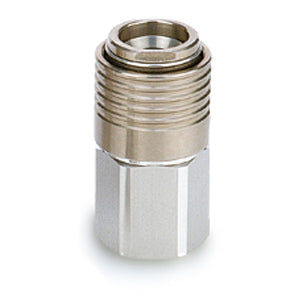

KKA*S-*F, S-Couplers, Stainless Steel, Female Thread – KKA9S-12F

• S coupler with Plug and Socket, body material: Stainless steel 304
• Seal material: Fluoropolymer (special FKM)
• Threads, sizes: R, Rc, from 1/8 to 1 1/2
• Operating temperature: -5 to 150 °C
• Check valve built in to both Plug and Socket
• Grease-free.

Key features

• Female thread.
• Body size: 1/8, 1/4, 1/2, 3/4, 1, 1 1/4.
• Applicable Port Size: Rc1/8, Rc1/4, Rc3/8, Rc1/2, Rc3/4, Rc1, Rc1 1/4, Rc1 1/2.

Specifications

• Built-in Check Valve: w/Check Valve
• Body Size: 9 (1 1/4)
• Port Size: Rc 1 1/4

Additional information

• Part number: KKA9S-12F
• Lead time (days): 23
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 7307291090
