SMC · Process Valves

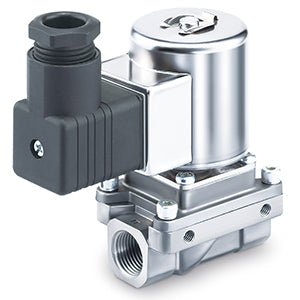

JSXZ61-SF10F-5WN
excl. VAT · €468,11 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | JSXZ61-SF10F-5WN |
|---|---|
| Oil-free Option | None |
| Bracket | None |
| Electrical Entry | WN (M12 Connector w/o Connector Cable, w/Surge Voltage Suppressor) |
| Body Material | S (Stainless Steel) |
| Size | 6 (60) |
| Rated voltage | 5 (24 VDC) |
| Port Size | 10 (1) |
| Seal Material | F (FKM) |
| Thread Type | F (G) |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Direct /Pilot Operated 2-Port Solenoid Valve
- Applicable fluid: air, water, steam, heated water, vacuum or oil
- Flow rate up to 700 l/min (water)
- Orifice diameter: 1.6 to 50 mm
- Port size: 1/8" to 2"
- Body material: stainless steel, brass, bronze and aluminium
- Coil material: stainless steel
- Enclosure: IP67.
Key features
- Applicable fluid: air, water, oil
- Flow rate up to 145 l/min (water)
- Orifice diameter: 10 to 25 mm
- Port size: 1/4” to 1”
- Body material: stainless steel, brass and aluminium
- Coil material: stainless steel
- Enclosure: IP67.
