Request a quote
SMC · Process Valves

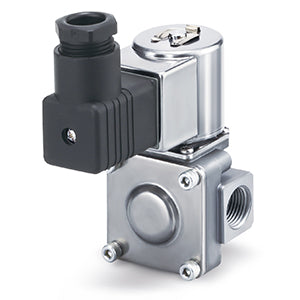

JSXD31-CN03F-JDS
excl. VAT · €70,91 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | JSXD31-CN03F-JDS |
|---|---|
| Size | 3 (30) |
| Valve Type | 1 (Normally Closed) |
| Body Material | C (Brass) |
| Seal Material | N (NBR) |
| Port Size | 03 (3/8) |
| Thread Type | F (G) |
| Rated voltage | J (230 VAC) |
| Electrical Entry | DS (DIN Terminal, w/Surge Voltage Suppressor) |
| Oil-free Option | None |
| Bracket | None |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Direct /Pilot Operated 2-Port Solenoid Valve
- Applicable fluid: air, water, oil
- Flow rate up to 2200 l/min (water)
- Orifice diameter: 1.6 to 50 mm
- Port size: 1/8" to 2"
- Body material: stainless steel, brass, bronze and aluminium
- Coil material: stainless steel
- Enclosure: IP67.
Key features
- Applicable fluid: air, water, oil
- Flow rate up to 2200 l/min (water)
- Orifice diameter: 10 to 50 mm
- Port size: 1/4" to 2"
- Body material: stainless steel, brass, bronze and aluminium
- Coil material: stainless steel
- Enclosure: IP67.
