SMC · Process Valves
JSX31U-SF703F-5DS
excl. VAT · €111,19 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | JSX31U-SF703F-5DS |
|---|---|
| Oil-free Option | None |
| Bracket | None |
| Electrical Entry | DS (DIN Terminal, w/Surge Voltage Suppressor) |
| Body Material | S (Stainless Steel) |
| Orifice Diameter, Port Size | 703 (ø7.1, 3/8) |
| Size | 3 (30) |
| Rated voltage | 5 (24 VDC) |
| Seal Material | F (FKM) |
| Thread Type | F (G) |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |

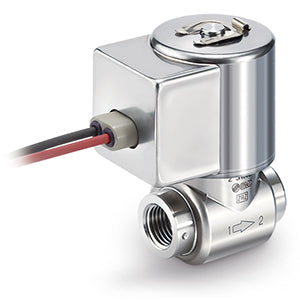

- Direct /Pilot Operated 2-Port Solenoid Valve
- Applicable fluid: air, water, steam, heated water, vacuum or oil
- Flow rate up to 700 l/min (water)
- Orifice diameter: 1.6 to 50 mm
- Port size: 1/8" to 2"
- Body material: stainless steel, brass, bronze and aluminium
- Coil material: stainless steel
- Enclosure: IP67.
Key features
- Applicable fluid: air, water, oil
- Flow rate up to 12.6 l/min (water)
- Orifice diameter: 2.4 to 7.1 mm
- Port size: 1/8” to 3/8”
- Body material: stainless steel, brass and aluminium
- Coil material: stainless steel
- Enclosure: IP67.
More part numbers in this series
JSX21V-CF302F-5DS-D€73,46JSX21V-CF302F-5WN-D€76,43JSX31-SF502F-5DZ-B€97,91JSX31-CF502F-5DZ-B€75,56JSX21-SN302F-5DS€74,19JSXD41-CN04F-JDS€81,50JSXD61-CN10F-5DS€124,62JSXD51-CN06F-5DS€97,47JSXD31-CN02F-5DS€59,09JSXD41-CN03F-JDS€81,50JSX21U-SF402F-5WN€89,12JSX11U-SF201F-5WN€70,48JSXD31-CN02F-JDS€59,09JSXD31-CN03F-5DS€59,09JSXD31-CN03F-JDS€59,09
