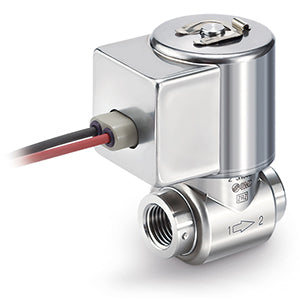

- Direct /Pilot Operated 2-Port Solenoid Valve
- Applicable fluid: air, water, steam, heated water, vacuum or oil
- Flow rate up to 700 l/min (water)
- Orifice diameter: 1.6 to 50 mm
- Port size: 1/8" to 2"
- Body material: stainless steel, brass, bronze and aluminium
- Coil material: stainless steel
- Enclosure: IP67.
Key features
- Applicable fluid: air, water, oil
- Flow rate up to 12.6 l/min (water)
- Orifice diameter: 2.4 to 7.1 mm
- Port size: 1/8” to 3/8”
- Body material: stainless steel, brass and aluminium
- Coil material: stainless steel
- Enclosure: IP67.
Specifications
- Oil-free Option: None
- Bracket: None
- Electrical Entry: DN (DIN Terminal w/o Connector, w/Surge Voltage Suppressor)
- Body Material: C (Brass)
- Orifice Diameter, Port Size: 402 (ø4.0, 1/4)
- Size: 2 (20)
- Rated voltage: 5 (24 VDC)
- Seal Material: N (NBR)
- Thread Type: F (G)
Additional information
- Part number: JSX21U-CN402F-5DN
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
