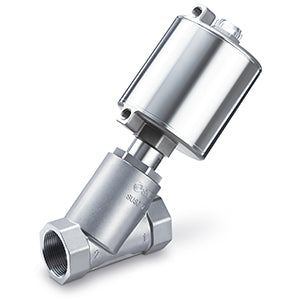

Angle Seat Valve, Air Operated Type – JSB – JSB41-ST25AF-4S

• Applicable fluid: air, water, steam
• Flow rate up to 87.5 (Cv factor)
• Port size: 3/8" to 2"
• Body material: stainless steel 316L
• Actuator material: stainless steel 304
• Long service, up to 10 million cycles (water and air).

Key features

• Applicable fluid: air, water, steam
• Flow rate up to 87.5 (Cv factor)
• Port size: 3/8" to 2"
• Body material: stainless steel 316L
• Actuator material: stainless steel 304
• Long service, up to 10 million cycles (water and air).

Specifications

• Head Size: 4 (ø63)
• Body Material: S (Stainless Steel)
• Head Material: S (Stainless Steel)
• Valve Type: 1 (N.C.)
• Port Size: 25A (1)
• Seal Material: T (Fluororesin)
• Thread Type: F (G)
• Valve Size: 4 (Series: 40)

Additional information

• Part number: JSB41-ST25AF-4S
• Lead time (days): 3
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8481209090

Documents

• Catalogue (PDF)
• CAD model
• Datasheet
