SMC · Actuator Accessories
JS32-10-125S
excl. VAT · €106,82 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | JS32-10-125S |
|---|---|
| Applicable Bore Size | 32 (25/32 mm) |
| Nominal Thread | 10-125 (M10 x 1.25) |
| Material | S (Silicone Rubber) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |

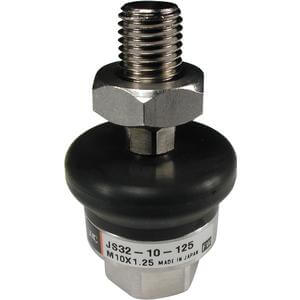

- Floating joint series JS is made of stainless steel and used to increase corrosion resistance. JS uses a dust cover made of fluoro rubber or silicon rubber and is shaped to prevent residual liquid, therefore sealing is improved. Overall length as well as maximum tension and compression are the same as standard series JA.
Key features
- Floating joint: stainless steel type
- Applicable bore size: 10, 16, 20, 25, 32, 40, 50, 63 mm
- Applicable dust cover in fluoro rubber or silicon rubber
