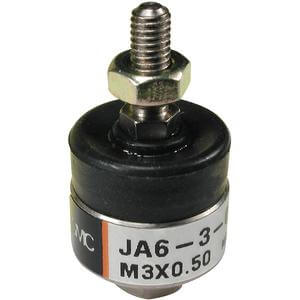

JA, Floating Joint, Standard – JA30-10-125

• The floating joint series JA (standard) and JAH (heavy duty), can absorb any "off-centering" or "loss of parallel accuracy" between the cylinder and the driven body. Because of this, centering is unnecessary, installation time is drastically reduced, and a high level of machining accuracy is unnecessary.

Key features

• Standard/Thread nominal size
• Mountings: basic, flange, foot
• Eleven model options available
• Centering is unnecessary
• Rotation angle: ¹5°

Specifications

• Mounting: Basic Style
• Applicable Bore Size: 25/30 mm
• Nominal Thread: 10-125 (M10 x 1.25)
• Option: None

Additional information

• Part number: JA30-10-125
• Lead time (days): 5
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8479899790

Documents

• Catalogue (PDF)
• CAD model
