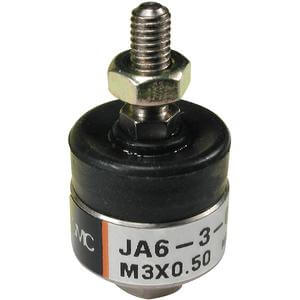

JA, Floating Joint, Semi-standard – JA100-24-300

• The floating joint series JA (standard) and JAH (heavy duty), can absorb any "off-centering" or "loss of parallel accuracy" between the cylinder and the driven body. Because of this, centering is unnecessary, installation time is drastically reduced, and a high level of machining accuracy is unnecessary.

Key features

• Semi-standard/Thread nominal size
• Mountings: basic, flange, foot
• Eleven model options available
• Centering is unnecessary
• Rotation angle: ¹5°

Specifications

• Mounting: Basic Style
• Applicable Bore Size: 100 mm
• Nominal Thread: 24-300 (M24 x 3)
• Option: None

Additional information

• Part number: JA100-24-300
• Lead time (days): 19
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8479899790

Documents

• Catalogue (PDF)
• CAD model
• Operation manual
