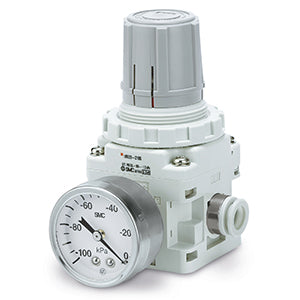

VACUUM REGULATOR
The IRV series vacuum regulator was developed to upgrade the design of the T203 model in a more compact size and to expand the range of vacuum regulators. Thread sizes available include Rc(PT), NPT and G(PF).
Features
- Standarized single piping.
- Maximum flow rate is now more than twice the flow rate of the existing model: 140 l/min (ANR), 240 l/min (ANR).
- 20% Mass reduction.
- Integrated one-touch fitting is now standard.
- Easy to attach/detach the pressure gauge or digital pressure switch due to attachment by clip.
- 2 possible mounting orientations for the pressure gauge or digital pressure switch.
- Multiple mounting angles.
- Expanding mounting variations.
Specifications
- Part number: IRV10A-C08G
- Item number: 01016050
- Body Size: 10 [Max Flow 140 l/min (ANR)]
- Single Sided Connections: A (Single Sided Connections)
- Fittings: Straight
- Connection Tubing O.D.: C08 (ø8mm)
- Bracket: None
- Accessory: G (With Pressure Gauge)
- Panel Mounted Switch: None
- Lead time: 4 days
- Country of origin: JP
