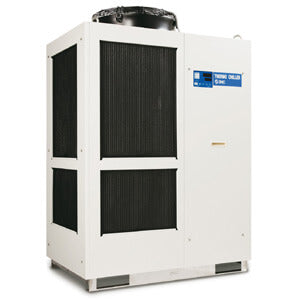

SMC · Circulating Fluid Temperature Controller
HRS150-A-40
excl. VAT · €23.221,57 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | HRS150-A-40 |
|---|---|
| Option | None |
| Cooling Capacity | 150 [Cooling capacity: 13.0/14.5 kW (50/60 Hz)] |
| Thread | Rc |
| Lead time (days) | 120 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8418690091 |
- Circulating Fluid Temperature Controller. Water or Air-cooled
- Cooling capacity: From 1.1 to 38 kW (50 Hz)
- Temperature stability: ±0.1 °C to ± 1 °C
- Set temperature range: -10-45 °C
- With heating function and self-diagnosis
- Serial communication
- Compact and lightweight.
Key features
- Air-cooled refrigeration standard type Thermo-chiller.
- Maximum cooling/heating capacity: 10.0/1.7 kW (HRS100), 15.0/2.5 kW (HRS150).
- Temperature stability: ±1.0 ºC.
- Temperature range: 5 to 35 ºC.
- Outdoor installation: IPX4.
- Applicable fluid: clear water, Ethylene glycol aqueous solution, deionised water.
