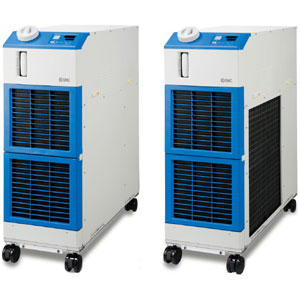

SMC · Circulating Fluid Temperature Controller
HRS090-A-40
excl. VAT · €18.943,78 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | HRS090-A-40 |
|---|---|
| Cooling Method | A (Air-cooled Refrigeration) |
| Pipe Thread | Rc |
| Power Supply | 40 [3-phase 380 to 415 VAC (50/60 Hz)] |
| Option | None |
| Lead time (days) | 120 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8418690091 |
- Circulating Fluid Temperature Controller. Water or Air-cooled
- Cooling capacity: From 1.1 to 38 kW (50 Hz)
- Temperature stability: ±0.1 °C to ± 1 °C
- Set temperature range: -10-45 °C
- With heating function and self-diagnosis
- Serial communication
- Compact and lightweight.
Key features
- Circulating Fluid Temperature Controller. Water or air-cooled.
- Cooling capacity: 9 kW.
- Temperature stability: ±0.5 ºC.
- Temperature range: 5-35 ºC.
- With heating function and self-diagnosis.
- Serial communication.
- Compact (970 x 377 x 1090 mm) and lightweight (136 kg).
