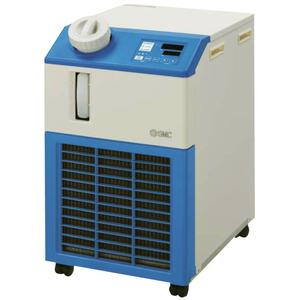

SMC · Circulating Fluid Temperature Controller
HRS040-W-20-MT
excl. VAT · €12.125,36 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | HRS040-W-20-MT |
|---|---|
| Cooling Capacity | 040 [Cooling capacity: 3800/4200 W (50/60 Hz)] |
| Cooling Method | W (Water-cooled Refrigeration) |
| Thread | Rc |
| Power Supply | 20 [Single-phase 200 to 230 VAC (50/60 Hz)] |
| Earth Leakage Breaker | None |
| High ambient temperature | None |
| Automatic fluid fill | None |
| DI Water Piping | M [Applicable to DI Water (Deionized Water) Piping] |
| High-pressure pump | T (High-Lift Pump) |
| Units | None |
| Lead time (days) | 120 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8418690091 |
- Circulating Fluid Temperature Controller. Water or Air-cooled
- Cooling capacity: From 1.1 to 38 kW (50 Hz)
- Temperature stability: ±0.1 °C to ± 1 °C
- Set temperature range: -10-45 °C
- With heating function and self-diagnosis
- Serial communication
- Compact and lightweight.
Key features
- Compact and lightweight.
- Temperature stability ± 0.1 ºC.
- Improved maintenance performance.
- Heating function available even with no heater.
