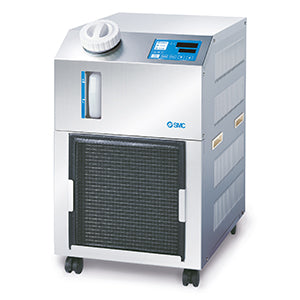

Circulating Fluid Temperature Controller, Environmentally Resistant Type - HRS-R – HRS030-AF-20-R

• Can be used in a system that is installed in a dusty or water spray environment

Key features

• Cooling capacity: 1.7 kW to 4.5 kW
• Temperature stability: ±0.1 °C
• Set temperature range: 5 to 40 °C
• Protection of the electrical unit: IP54
• Metal panel
• With heating function and self-diagnosis.

Specifications

• Cooling Capacity: 030 [Cooling capacity: 2500/2900 W (50/60 Hz)]
• Thread Type: F (G w/PT-G Conversion Fitting Set)
• Earth Leakage Breaker: None
• Automatic fluid fill: None
• Large capacity tank specification: None
• High-pressure Pump Mounted: None
• Stainless steel panel specification: None
• Units: None

Additional information

• Part number: HRS030-AF-20-R
• Lead time (days): 120
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8418690091

Documents

• Catalogue (PDF)
• CAD model
• Operation manual
• Installation manual
• CE certificate
