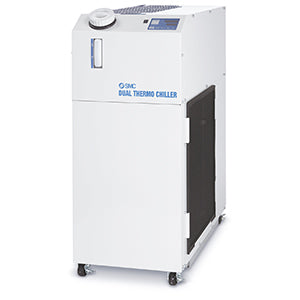

SMC · Circulating Fluid Temperature Controller
HRLE090-A-40-M
excl. VAT · €22.475,94 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | HRLE090-A-40-M |
|---|---|
| Cooling Capacity | 090 (9.5 kW) |
| Cooling Method | A (Air-cooled Refrigeration) |
| Power Supply | 40 [3-phase 380 to 415VAC (50/60 Hz); 3-phase 460 to 480VAC (60 Hz)] |
| Option | M (Applicable to DI Water Piping) |
| Lead time (days) | 120 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8418690091 |
- The HRLE is a temperature control device featuring two independent cooling channels in one package. This thermo chiller is designed to cool the optical head and oscillator of a laser processing system. Considerable space savings can be realized compared to a two chiller solution. All operation can be managed from a single touch panel. Compared to the HRL, the HRLE targets medium-sized 3-4kW lasers and simplifies the internal components. Heat extracted by the refrigerant cycle can be either cooled with a fan (air type) or with facility water (water type). Space and energy are saved using a single fan (air type), compressor, pump and tank. The heating function uses waste heat from the refrigerant discharge instead of a separate electric heater to improve efficiency and reliability. Several features are optional to reduce the cost of the basic unit. These options include DI water capability, electrical conductivity control kit, bypass piping, automatic water fill kit, particle and fluid fill filters, and a ball valve set for adjusting coolant pressure and flow rate.
Key features
- Dual Channel Refrigerated Thermo-chiller. Air-cooled & water-cooled
- Cooling capacity:
- Air-cooled: CH1: 8 kW; CH2 1.5 kW
- Temperature stability: CH1: ±0.1 ºC; CH2: ±0.5 ºC
- Set temperature range: CH1:15 to 25 ºC; CH2:20 to 40 ºC
