GAUGE
SMC offers a variety of pressure gauges including general purpose, oil-free/external parts copper-free with limit indicator, clean series and a pressure gauge with a pressure switch. Pressure ranges vary from 0 to 1.5MPa, depending on the selected gauge. Panel mounting is possible.
Features
- 4 gauge diameters: ø37.5, ø42.5, ø51.4, ø63.4.
- Red and green zones offer improved visibility of pressure control range.Back side thread.R1/8, R1/4Indication precision: ±3% F.S. (full span)
Specifications

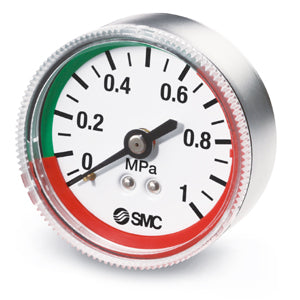

- Part number: G46-10-01-L
- Item number: 00309067
- Size: G46 (ø42.5)
- Maximum Display: 10 (1.0 MPa)
- Connection Thread: 01 (R1/8)
- Clear Cover Material: Polycarbonate
- Lead time: 5 days
- Country of origin: JP
