SMC · Industrial Filters
FH540-08-010-P010
excl. VAT · €609,38 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | FH540-08-010-P010 |
|---|---|
| Construction | 40 (Element Upward Removal, Threaded, 3.5 MPa - 21 MPa) |
| Filtration | 10μm |
| Relief Valve | 1 (None) |
| Max. Operating Pressure | 5 (14 MPa) |
| Pressure Indicator | 0 (None) |
| Port Size | 08 (1 Threaded) |
| Fluid | 0 (Petroleum) |
| Element | P (Paper) |
| Fluid Direction | IN Left |
| Made to Order | None |
| Minimum order quantity | 0 |

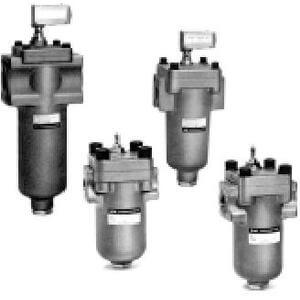

- Line filter
- Fluid: Hydraulic fluid
- Flow rate up to 160 l/min
- Nominal filtration rating: 5, 10, 20 μm
- Large drain exhaust port.
Key features
- Nominal filtration rating: 5, 10, 20 μm.
- Flow rate up to 160 l/min.
- Operating pressure up to 21 MPa.
- Fluid temperature: Max. 80 °C.
Documents
More part numbers in this series
FH340-03-000-P005€202,93FH340-03-001-P010€210,41FH342-06-000-P005€247,19FH342-06-000-P010€247,19FH342-06-001-P010€254,63FH342-08-000-P005€247,19FH342-08-000-P010€247,19FH342-08-001-P010€254,42FH540-03-010-P005€327,81FH540-03-010-P010€327,81FH540-06-010-P005€507,82FH540-06-010-P010€507,82FH540-08-010-P005€507,82FH540-08-010-P010This item
