SMC · Industrial Filters
FH340-03-000-P005
excl. VAT · €243,52 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | FH340-03-000-P005 |
|---|---|
| Max. Operating Pressure | 3 (3.5 MPa) |
| Construction | 40 (Element Upward Removal, Threaded, 3.5 MPa - 21 MPa) |
| Port Size | 03 (3/8 Threaded) |
| Pressure Indicator | 0 (None) |
| Relief Valve | Relief Valve |
| Fluid | 0 (Petroleum) |
| Element | P (Paper) |
| Filtration | 5μm |
| Fluid Direction | IN Left |
| Made to Order | None |
| Lead time (days) | 25 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8421298090 |

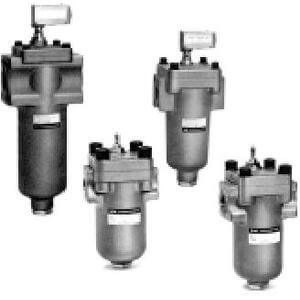

- Line filter
- Fluid: Hydraulic fluid
- Flow rate up to 160 l/min
- Nominal filtration rating: 5, 10, 20 μm
- Large drain exhaust port.
Key features
- Nominal filtration rating: 5, 10, 20 μm.
- Flow rate up to 160 l/min.
- Operating pressure up to 21 MPa.
- Fluid temperature: Max. 80 °C.
