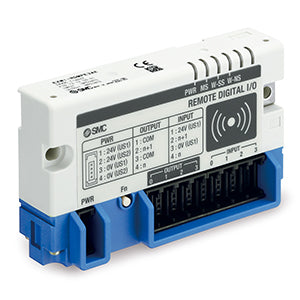

COMPACT WIRELESS REMOTE
Wireless serial transmission system for input/output Compatible protocols: EtherNet/IPTM, PROFINET, CC-Link, EtherCAT, IO-Link Up to 127 remotes per base Up to 1280 inputs / 1280 outputs Applicable valve series: JSY, new SY, VQC, S0700, SV Up to IP67 enclosure compliant.
Features
- Wireless serial transmission system for input/output
- Up to 8 inputs / 8 outputs
- Communication distance: up to 100 m
- Up to IP67 enclosure compliant.
Specifications
- Part number: EXW1-RDMPE3BE
- Item number: 02360256
- Model: R (Wireless Remote Unit)
- Type: D (Digital)
- Input/Output: M (Input/Output)
- Polarity: P (PNP)
- Connector and Number of Points: E3 (e-CON, 8 Points)
- Antenna Specification for Wireless Comm: B (External Antenna)
- Frequency Channel Select Function: E (5 to 79 Channels, Countries w/Radio Law Certification Outside US, Canada, Brazil and Korea)
- Lead time: 28 days
- Country of origin: JP
