SMC · Linear Actuators
CJPB10-5H6Z
excl. VAT · €29,10 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | CJPB10-5H6Z |
|---|---|
| Mounting | B (Panel Mount Style) |
| Bore Size | 10mm |
| Stroke | 5mm |
| Hose Nipple | H6 (For Tube Ø6/Ø4) |
| Rod End Thread | Thread |
| Rod End Cap | without Cap |
| Made to Order | None |
| Lead time (days) | 21 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8412310090 |

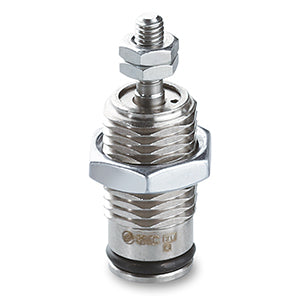

- SMC's CJP series double acting pin cylinder's compact design minimizes mounting space. To accommodate many design styles, the CJP is available in five mounting styles: basic nose, foot, flange, clevis, and trunnion. An auto switch capable model is also available. Available bore sizes include 6, 10, and 15mm with strokes ranging from 5 to 30mm. Other features include brass panel mounting nuts, stainless steel piston rod, and brass bodies.
Key features
- Bore sizes (mm): 4, 6, 10, 16
- Strokes from 5 to 15 mm
- 2 mounting options: embedded and panel mount type
- One-touch fitting can be connected
- Rod end cap available.
