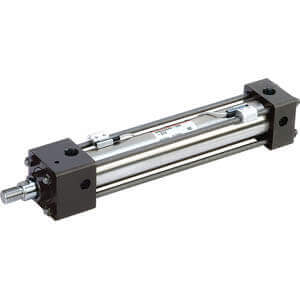

SMC · Hydraulic Cylinders
CHDSGFY63TF-200A-B
excl. VAT · €893,95 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CHDSGFY63TF-200A-B |
|---|---|
| Magnet | D (With Magnet) |
| Mounting | FY (Front Rectangular Flange Type) |
| Bore Size | 63mm |
| Port Thread Type | TF (GF) |
| Stroke | 200 |
| Rod End Nut | A (With Rod End Nut) |
| Cushion | With Cushion in Both Sides |
| Port Position | B (Port on Top - Cushion Valve Down) |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 38 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8412218090 |
- CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.
Key features
- Maximum weight: no more than 52% of series CH2. <LI>Cylinder with Built-in Cover and Mounting Bracket allows easy Disassembly and Assembly.
