SMC · Hydraulic Cylinders

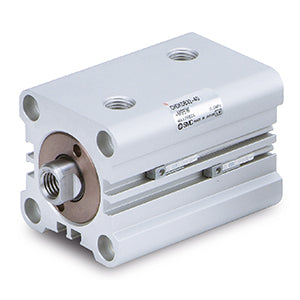

CHDKGB25-20
excl. VAT · €165,55 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | CHDKGB25-20 |
|---|---|
| Mounting | B (Basic) |
| Bore Size | 25mm |
| Rod End Nut | Female Thread |
| Stroke | 20mm |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Magnet | D (Built-in) |
| Auto Switch | No Switch |
| Thread Type | Rc |
| Lead time (days) | 18 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8412218090 |
- CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.
Key features
- JIS standard compact hydraulic cylinder
- Nominal pressure: 16MPa
- Bore sizes: 20~25
- Mounting: basic type
- Auto switch capable
