SMC · Hydraulic Cylinders

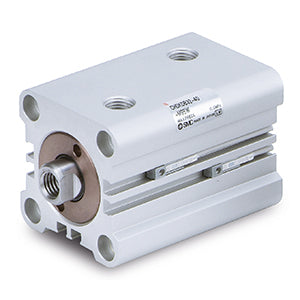

CHDKGB80-100M
excl. VAT · €859,72 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CHDKGB80-100M |
|---|---|
| Magnet | D (Built-in) |
| Mounting | B (Basic) |
| Bore Size | 80mm |
| Thread Type | Rc |
| Stroke | 100mm |
| Rod End Nut | Female Thread |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | M (1m) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8412218090 |
- CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.
Key features
- JIS standard compact hydraulic cylinder
- Nominal pressure: 16MPa
- Bore sizes: 32~100
- Mounting: basic type
- Auto switch capable
