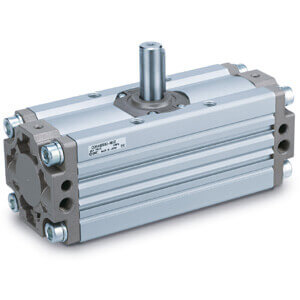

SMC · Rotary Actuators
CDRA1BS100TF-180CZ
excl. VAT · €789,58 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | CDRA1BS100TF-180CZ |
|---|---|
| Magnet | D (Built-in) |
| Mounting | B (Basic) |
| Shaft Type | S (Single Shaft) |
| Angle Adjusting Unit | None |
| Type | Pneumatic |
| Size | 100 mm |
| Port Thread | TF (G) |
| Rotation Angle | 180° |
| Type of Cushioning | C (Air Cushion) |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Rotary actuator
- Sizes: 30, 50, 63, 80, 100
- Rotating angle: 90°, 100°, 180°, 190°
- Adjustable rotation time range: from 0.2 to 5 s/90°.
