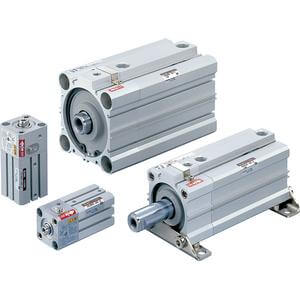

- Compact cylinder series CLQ, although equipped with locking function, is designed to minimize the overall length. Overall length of the model is achieved to be the same as that of the CQ2 compact cylinder. CLQ is available in 5 bore sizes ranging from 40 to 100mm and is auto switch capable.
Key features
- Low profile with compact lock unit<LI>Two types of mounting <LI>Locking is possible at any position within the entire stroke
- Locking direction is selectable <LI>Easy manual unlocking
Specifications
- Magnet: D (Built-in)
- Mounting: A (Both Ends Tapped)
- Bore Size: 50mm
- Thread: TF (G)
- Stroke: 100mm
- Body Option: Standard
- Locking Direction: F (Forwarding Stroke Lock)
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: CDLQA50TF-100D-F
- Lead time (days): 37
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
