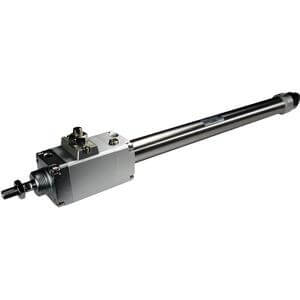

C(D)LM2, Air Cylinder, Double Acting, Single Rod, Fine Lock – CDLM2B20-200-D

• The series CLM2 offers a brake mechanism to stop the piston rod at any position while retracting or extending. With three different brake mechanisms and four bore sizes available, SMC gives you the choice of the best unit for your application. The compact and lightweight CLM2 is a part of the CM2 product line.

Key features

• Fine lock cylinder, CLM2
• Double acting, single rod
• 10 mounting options available
• Air hydro option available
• Auto switch capable

Specifications

• Magnet: D (Built-in)
• Style: Air Pressure Style
• Mounting: B (Basic Style)
• Bore Size: 20mm
• Stroke: 200
• Rod Boot: None
• Lock Style: D (Spring & Pneumatic Locking)
• Auto Switch: No Switch
• Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
• Number: 2 pcs. (Or None in the Case of No Switch)

Additional information

• Part number: CDLM2B20-200-D
• Lead time (days): 33
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8412310090
