SMC · Linear Actuators

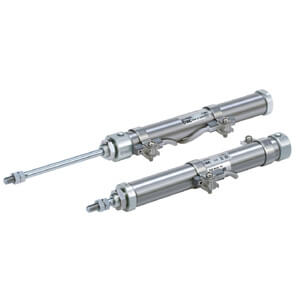

CDJ2B16-30TZ-B
excl. VAT · €49,43 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CDJ2B16-30TZ-B |
|---|---|
| Stroke | 30 |
| Action | T (Single Acting, Spring Extend) |
| Magnet | D (Built-in) |
| Pivot Bracket | None |
| Rod End Options | None |
| Auto Switch | No Switch |
| Mounting | B (Basic) |
| Bore Size | 16mm |
| Series | J2 |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Rod End Bracket | None |
| Head Cover Port Location | Perpendicular to Axis |
| Auto Switch Mounting Type | B (Band Mounting) |
| Lead time (days) | 6 |
| Minimum order quantity | 1 |
| Country of origin | CN |
| TARIC code | 8412310090 |
- Round Air Cylinder, Single/Double Acting, Single/Double Rod, Non Rotating, Direct Mounting, and Built-in Speed Controller options.
- Bore sizes (mm): 6, 10 and 16.
- Strokes up to 400 mm.
- Many head covers and mounting brackets available as standard.
- Fine adjustment of the auto switch position by just loosening one screw.
- 2-colour indication solid state auto switches can be mounted.
- Rubber bumper / Air cushion.
- Many made to order available.
Key features
- Spring extend or spring return
- Bore sizes: 6, 10, 16 (mm)
- Strokes from 15mm through 150mm
- Mounts: basic, foot, front flange, double clevis
- Variety of switches and a variety of lead wire lengths
