SMC · Linear Actuators

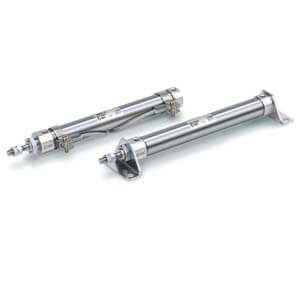

CDJ2B10-30Z-B
excl. VAT · €44,23 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | CDJ2B10-30Z-B |
|---|---|
| Magnet | D (Built-in) |
| Mounting | B (Basic) |
| Bore Size | 10mm |
| Stroke | 30 |
| Cushion | Rubber Cushion |
| Head Cover | Perpendicular to Axis |
| Pivot Bracket | None |
| Rod End Bracket | None |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Auto Switch Mounting | B (Band Mounting) |
| Rod End Options | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | CN |
| TARIC code | 8412310090 |
- Round Air Cylinder, Single/Double Acting, Single/Double Rod, Non Rotating, Direct Mounting, and Built-in Speed Controller options.
- Bore sizes (mm): 6, 10 and 16.
- Strokes up to 400 mm.
- Many head covers and mounting brackets available as standard.
- Fine adjustment of the auto switch position by just loosening one screw.
- 2-colour indication solid state auto switches can be mounted.
- Rubber bumper / Air cushion.
- Many made to order available.
Key features
- Standard double acting single rod.<LI>Bore sizes: 6, 10, 16 (mm)<LI>Strokes from 15mm through 400mm depending upon bore size.<LI>Mounts: basic, foot, front flange, double clevis.<LI>Part numbers with rod end bracket and/or pivot bracket available.<LI>Variety of switches and a variety of lead wire lengths.
