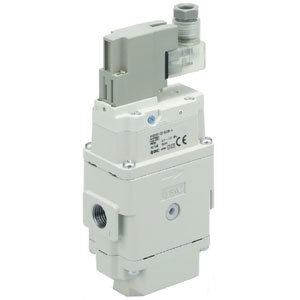

AV2000/3000/4000/5000-A, Soft Start-up Valve | AV4000-F04S-5DO-A

SOFT START-UP VALVE

Soft start-up valve Flow rate up to 11908 l/min (ANR) Optional built-in silencer Operating pressure range: 0.2 to 1.0 MPa IP65 enclosure.

Features

• Power consumption: 0,35 W
• Improved flow rate characteristics: Up to 2,3 times C[dm³/ (s·bar)]: 9,2
• Energy saving: No air flow when the main valve is switched
• Improved adjustability at low speed air supply
• Smaller profile and less work hours due to integrated silencer.

Specifications

• Part number: AV4000-F04S-5DO-A
• Item number: 02189333
• Body Size: 4000
• Thread: F (G)
• Port Size: 04 (1/2)
• Option: S (Silencer)
• Rated Voltage: 5 (24 VDC)
• Electrical Entry: DO (Type D, DIN Terminal w/o Connector)
• Surge Suppressor: None
• Manual Override: Non-locking Push Type
• Flow Direction/Pressure Unit: Flow direction: left to right
• Lead time: 25 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• CE certificate
• CE certificate 2
