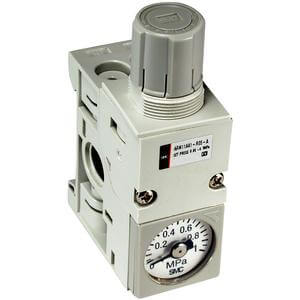

ARM11A, Regulator Block, Common Supply Type | ARM11AB1-R17-A1

MANIFOLD REGULATOR

Regulator manifold Single units, units for manifold and manifolds Individual supply or centralised supply Different mounting options: DIN rail, direct mounting, bracket, panel...

Features

• Regulator block, common supply type
• OUT piping type: straight & elbow (metric & inch)
• OUT piping position: bottom, top
• Handle position: top, bottom, front
• Accessories: pressure gauge
• Options: 0.35MPa setting, non-relieving, oil free

Specifications

• Part number: ARM11AB1-R17-A1
• Item number: 00150238
• Handle Position: B (Front)
• Piping: 1 (Bottom)
• Fitting: 17 (Ø6 Elbow)
• Accessory: A (Pressure Gauge)
• Option: 1 (0.35 MPa)
• Unit: Name Plate, Pressure Gauge MPa
• Digital Pressure Switch Output Specifications: None
• Lead time: 26 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
