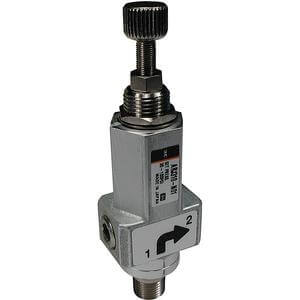

ARJ310, Miniature Regulator Series | ARJ310-01-1

MINIATURE REGULATOR

Miniature regulator series ARJ is part of SMC's pressure control equipment line. The ARJ series is available with or without one-touch fittings depending on the model type. All models come standard as direct operated relieving style. Two mounting thread options are available on the ARJ210 & ARJ310 series. ARJ1020F comes standard with M5 threads. Options include bracket, pressure gauge, and manifold base (depending on model).

Features

• Miniature regulator, ARJ310
• Compact and lightweight (70g)
• Allows smaller mounting pitch (18.3mm)
• Accomodates two types of threads
• One-touch fitting available

Specifications

• Part number: ARJ310-01-1
• Item number: 00117607
• Built-in One-touch Fitting: Steel Tube Piping
• Thread: R, Rc
• Accessory: None
• Tube Size: Without One-touch Fitting
• Option: 1 (0.2MPa Setting)
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
